Our Grade 8.8 hex head bolts are manufactured from medium carbon steel and heat-treated to achieve consistent strength properties. Suitable for structural connections, machinery assembly, and general engineering applications.
Available with full thread (DIN 933) or partial thread (DIN 931) configurations. Surface treatments include clear zinc plating, yellow zinc, hot-dip galvanizing, and black oxide finish.

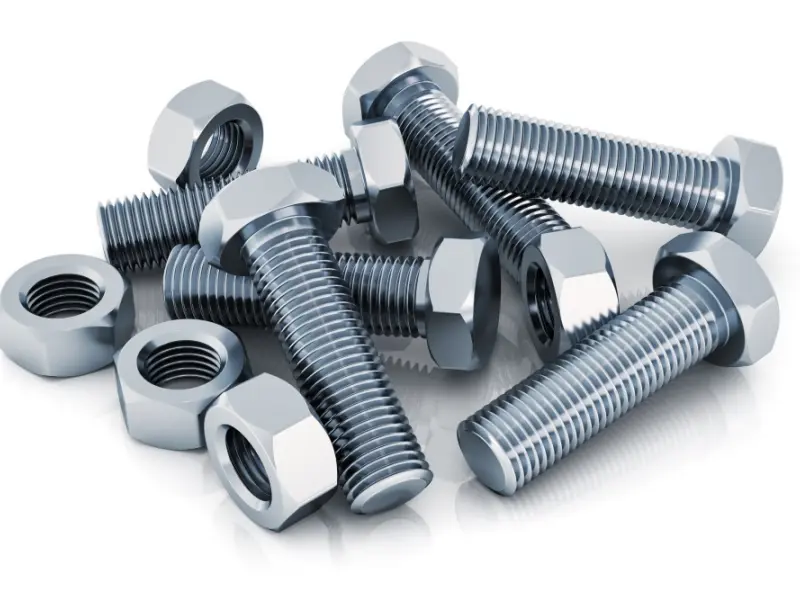

Understanding Hex Head Bolts Grade 8.8 Full Thread
Hex head bolts grade 8.8 full thread are essential fasteners used across many industries. These bolts feature a hexagonal head design. The full thread extends along the entire length of the bolt. Grade 8.8 represents the strength level and quality standard. This grade ensures high performance and reliability. Hex head bolts are widely trusted for demanding applications.
The term “full thread” means the threading covers the complete bolt length. This design offers better holding power compared to partial thread bolts. Grade 8.8 bolts meet international standards. They provide excellent tensile strength. These fasteners are perfect for critical connections.
Key Features of Grade 8.8 Hex Head Bolts with Full Thread
Hex head bolts grade 8.8 deliver several important benefits. The full thread design provides maximum grip and holding capacity. Grade 8.8 material ensures consistent strength performance. These bolts resist loosening under vibration. They maintain integrity in high-stress environments.
Main Characteristics:
- Hexagonal head shape for easy installation and removal
- Full thread coverage along the entire bolt length
- High tensile strength rating of 800 MPa minimum
- Excellent vibration resistance properties
- Superior corrosion resistance when properly treated
- Cost-effective solution for industrial applications

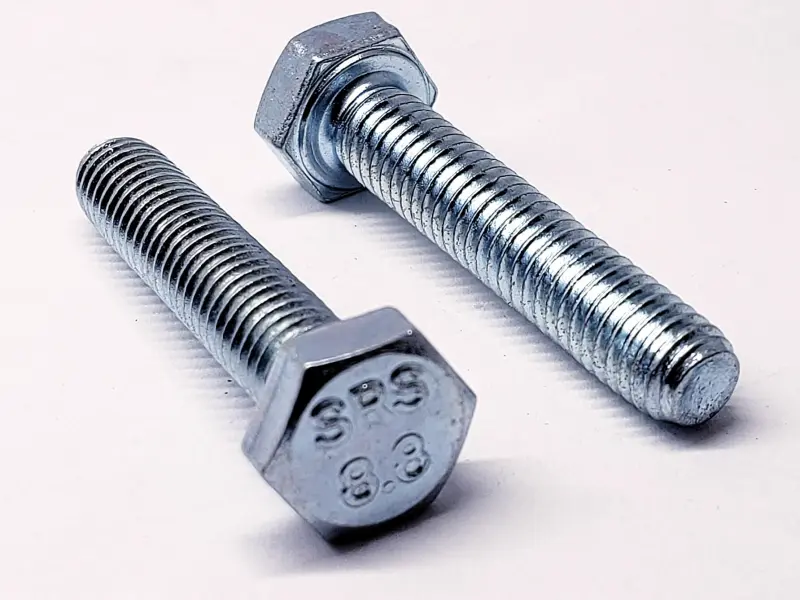

- Easy identification with standardized markings
- Compatible with standard hex nuts and washers
Size and Specifications of Full Thread Grade 8.8 Bolts
Our factory provides hex head bolts in multiple size options. We offer various diameter measurements to meet your specific needs. Different length options are available for different project requirements.
Standard Sizes Available
| Diameter (mm) | Common Lengths (mm) | Thread Pitch (mm) | Head Width (mm) |
|---|---|---|---|
| M6 | 20, 25, 30, 40, 50 | 1.0 | 10 |
| M8 | 25, 30, 40, 50, 60, 80 | 1.25 | 13 |
| M10 | 30, 40, 50, 60, 80, 100 | 1.5 | 16 |
| M12 | 40, 50, 60, 80, 100, 120 | 1.75 | 18 |
| M16 | 50, 60, 80, 100, 120, 150 | 2.0 | 24 |
| M20 | 60, 80, 100, 120, 150, 200 | 2.5 | 30 |
Extended Size Range
| Diameter (mm) | Length Range (mm) | Applications |
|---|---|---|
| M5 | 16-35 | Light industrial use |
| M14 | 45-180 | Medium-duty connections |
| M24 | 70-250 | Heavy industrial applications |
| M30 | 100-300 | Large infrastructure projects |
Material Composition and Strength Properties
Grade 8.8 hex head bolts full thread are manufactured from high-quality steel. The material composition includes iron, carbon, and other alloying elements. This combination creates exceptional durability. The strength properties exceed standard requirements consistently.
Strength Specifications:
- Tensile strength: 800 MPa minimum
- Yield strength: 640 MPa minimum
- Elongation: 12% minimum
- Reduction of area: 50% minimum
- Hardness rating: HV 240-310
These specifications make grade 8.8 bolts suitable for demanding environments. They handle heavy loads effectively. The material resists stress and fatigue conditions well.
Industrial Applications of Hex Head Bolts Grade 8.8 Full Thread
Hex head bolts grade 8.8 full thread serve numerous industries:
- Automotive Industry: Engine assembly and suspension systems require reliable fasteners. Our bolts provide consistent performance. They ensure vehicle safety and longevity.
- Construction Sector: Building frames and structural connections need strong bolts. Grade 8.8 bolts offer the required strength. They support heavy construction loads reliably.
- Machinery Manufacturing: Industrial equipment requires precision fasteners. Our bolts maintain tight connections. They prevent equipment failure during operation.
- Infrastructure Projects: Bridges and large structures demand high-grade bolts. Grade 8.8 fasteners provide the necessary holding power. They ensure long-term structural integrity.
- Oil and Gas Industry: High-pressure environments require superior bolts. Our fasteners withstand extreme conditions. They maintain seal integrity in challenging applications.
- Power Generation: Turbine assembly and reactor connections use grade 8.8 bolts. These fasteners ensure system reliability. They support critical power equipment.
- Aerospace Applications: Aircraft assembly requires precision fasteners. Our bolts meet aviation standards. They deliver consistent performance at altitude.
- Railway Systems: Track assembly and rolling stock use grade 8.8 bolts. Our fasteners ensure safe rail operations. They handle continuous vibration exposure.
- Marine Applications: Shipbuilding and offshore structures require corrosion-resistant bolts. Grade 8.8 fasteners withstand saltwater environments. They maintain structural integrity in harsh conditions.
- Mechanical Equipment: Pump and compressor assembly use our bolts. They provide reliable fastening solutions. They reduce maintenance requirements significantly.
Types of Hex Head Bolts Grade 8.8 We Manufacture

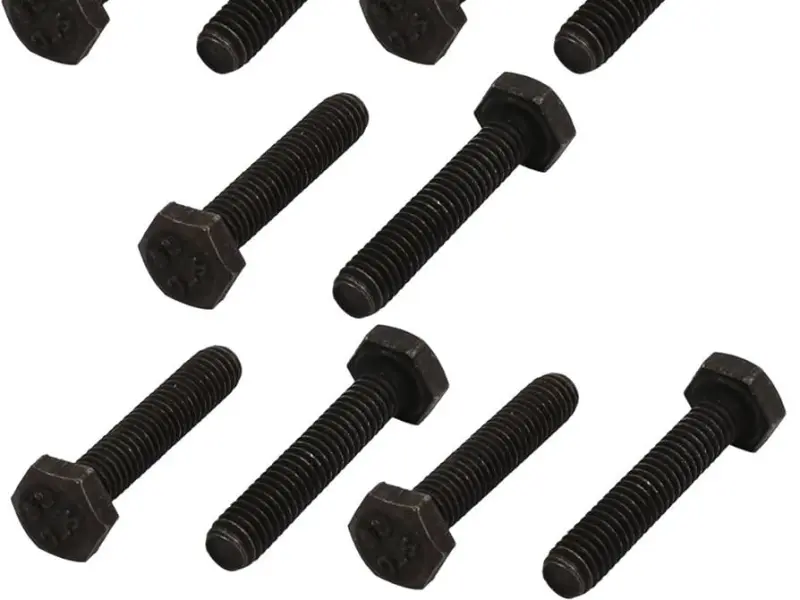

Standard Black Oxide Finish Bolts
Our factory produces standard black oxide hex head bolts. These bolts feature a protective black coating. The coating prevents light corrosion and rust. This type works well for general industrial applications. The black finish helps with visual identification. It is cost-effective and reliable.
Benefits of Black Oxide Finish:
- Affordable pricing
- Good corrosion resistance for indoor use
- Easy to identify visually
- Consistent quality standards
- Suitable for general applications

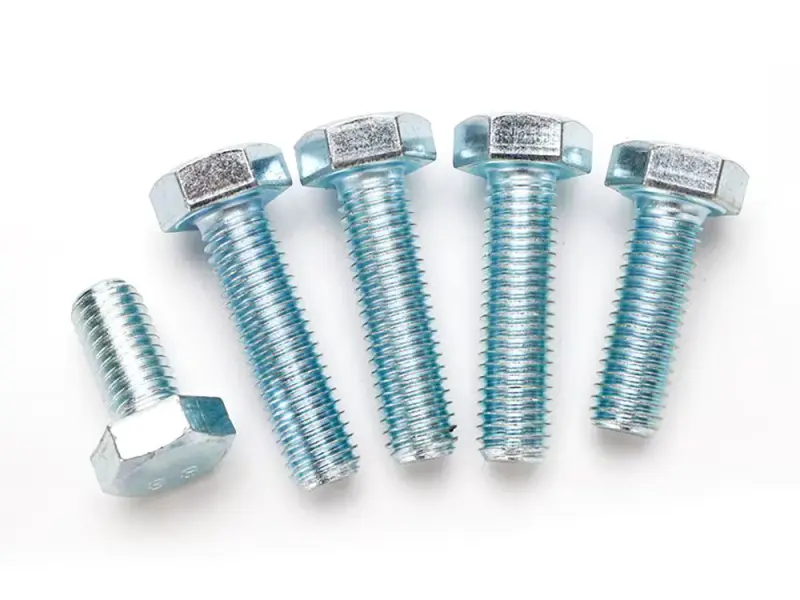

Zinc Plated Bolts
Zinc-plated hex head bolts grade 8.8 full thread offer superior protection. The zinc coating creates a sacrificial layer. It protects the steel underneath from rust. This type works well for outdoor and humid environments. The silver-white appearance indicates the zinc plating clearly.
Zinc Plating Advantages:
- Enhanced corrosion resistance for outdoor use
- Attractive silver appearance
- Suitable for moderate to harsh environments
- Long-lasting protective layer
- Widely used in construction and infrastructure
Hot-Dip Galvanized Bolts
Hot-dip galvanized hex head bolts provide maximum corrosion protection. The thick galvanized coating offers excellent durability. This type performs best in severe outdoor conditions. It handles coastal environments effectively. The coating is thick and long-lasting.
Hot-Dip Galvanizing Benefits:
- Maximum corrosion resistance available
- Suitable for coastal and marine applications
- Thicker protective coating than zinc plating
- Extended service life in harsh conditions
- Superior protection for long-term outdoor use
Stainless Steel Grade 8.8 Bolts
We manufacture stainless steel hex head bolts for premium applications. These bolts offer excellent corrosion resistance. They work perfectly in food, pharmaceutical, and medical industries. Stainless steel requires no additional coating. It maintains appearance over time.
Stainless Steel Features:
- Complete corrosion resistance without coating
- Food-grade and medical-grade options available
- Attractive finish maintenance
- Perfect for hygiene-sensitive applications
- Higher initial cost but superior long-term value
Dacromet Coated Bolts
Dacromet-coated hex head bolts combine zinc and aluminum coating. This coating provides superior corrosion resistance to salt spray. It works exceptionally well in automotive applications. The coating is thinner than hot-dip galvanizing. It maintains a uniform appearance.
Dacromet Coating Advantages:
- Superior salt spray resistance
- Automotive industry standard
- Uniform silver-gray appearance
- Better hydrogen embrittlement resistance
- Extended service life in challenging environments
Our Factory’s Aluminum Product Range
Our factory specializes in multiple product types beyond hex head bolts. We understand diverse customer needs. We provide comprehensive fastening solutions.
Aluminum Fasteners and Components
We manufacture aluminum hex head bolts for weight-sensitive applications. Aluminum fasteners reduce overall weight. They work well in aerospace and automotive industries. Our aluminum bolts maintain strength-to-weight ratios. We offer various specifications and finishes.
Aluminum Fastener Options:
- Aluminum hex head bolts in multiple grades
- Lightweight solutions for aerospace applications
- Corrosion-resistant aluminum alloys
- Anodized finishing for enhanced durability
- Cost-effective alternatives for specific applications
Aluminum Washers
We produce aluminum washers in various sizes. These washers distribute load across surfaces. They prevent bolt head sinking. Our aluminum washers reduce weight in assemblies. We offer both standard and custom sizes.
Aluminum Spacers and Bushings
Custom aluminum spacers ensure proper component spacing. Our bushings reduce friction between parts. These products work in machinery and equipment assembly. We manufacture spacers to exact specifications. We provide solutions for specialized applications.
Aluminum Extrusions
We offer standard and custom aluminum extrusions. These products serve construction and industrial sectors. Extrusions provide structural strength with light weight. We can produce profiles to your exact requirements. Custom designs are our specialty.
Aluminum Sheets and Plates
Our factory supplies aluminum sheets and plates in various thicknesses. These materials work for fabrication and manufacturing. We offer both standard and specialty alloys. We can cut materials to your specifications. Bulk orders receive competitive pricing.
Why Choose Our Factory for Hex Head Bolts Grade 8.8
Our factory stands out in the fastener industry. We provide quality assurance at every production stage. Our team has extensive experience with hex head bolts grade 8.8 full thread manufacturing.
Our Manufacturing Advantages:
- State-of-the-art production equipment and technology
- Strict quality control processes ensure consistency
- Fast production turnaround times
- Competitive pricing for bulk orders
- Customization capabilities for special requirements
- International standards compliance (ISO, DIN, ASTM)
- Reliable delivery schedules
- Responsive customer service team
- Sustainable manufacturing practices
- Complete technical support and documentation
We understand that each customer has unique needs. Our factory adapts to diverse requirements. We work with industries worldwide. We build long-term partnerships with clients.
Quality Standards and Certifications
Our hex head bolts grade 8.8 meet international quality standards. We comply with ISO 4014 specifications for bolt dimensions. We follow ISO 898-1 for mechanical properties. Our products meet DIN standards consistently.
Quality Certifications:
- ISO 9001:2015 Quality Management System
- ISO 4014 Hex Head Bolts Standard Compliance
- ISO 898-1 Mechanical Properties Certification
- DIN 931 Bolt Standard Compliance
- ASTM Standards Certification
- CE Mark for European compliance
- RoHS Compliance for environmental safety
Each bolt undergoes rigorous testing. We verify tensile strength and hardness. We check thread quality consistently. Our testing ensures reliability and performance.
Ordering Hex Head Bolts Grade 8.8 Full Thread
Ordering from our factory is simple and straightforward. We offer flexible minimum order quantities. We provide detailed technical support throughout the process.
Order Process:
- Contact our sales team with specifications
- Receive a detailed quotation quickly
- Confirm order details and delivery schedule
- We produce bolts with quality oversight
- Final inspection before shipment
- Fast, reliable delivery to your location
We accept orders in any quantity. Small orders are welcome. Large bulk orders receive special pricing. We ship worldwide with various logistics options.
Technical Support and Documentation
Our factory provides complete technical documentation. We offer installation guides for hex head bolts. We supply material certifications for each batch. Our engineers answer technical questions.
Documentation Provided:
- Material certificates of conformance
- Tensile test reports upon request
- Installation and assembly instructions
- Technical specification sheets
- Product quality reports
- Compliance certificates
Hex head bolts grade 8.8 full thread
Hex head bolts grade 8.8 full thread are essential fasteners for demanding applications. Our factory produces high-quality bolts that meet strict standards. We offer multiple finishes and materials. Our aluminum product range complements our fastener offerings. We provide competitive pricing and excellent service. Contact our factory today for your fastening needs. We deliver reliability and performance you can trust.
Contact Our Factory Today
We are ready to supply your hex head bolts grade 8.8 full thread requirements. Our factory team responds quickly to inquiries. We provide custom solutions for unique specifications. Get a quote today and experience our quality difference. Let us become your trusted fastener supplier.
