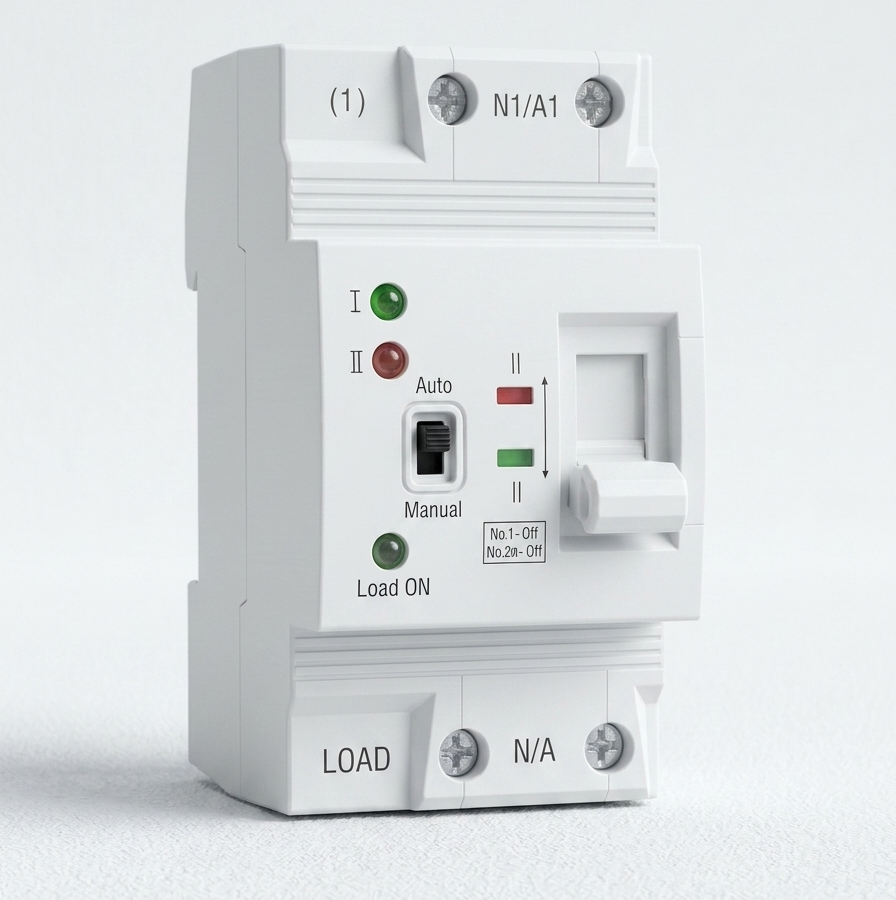

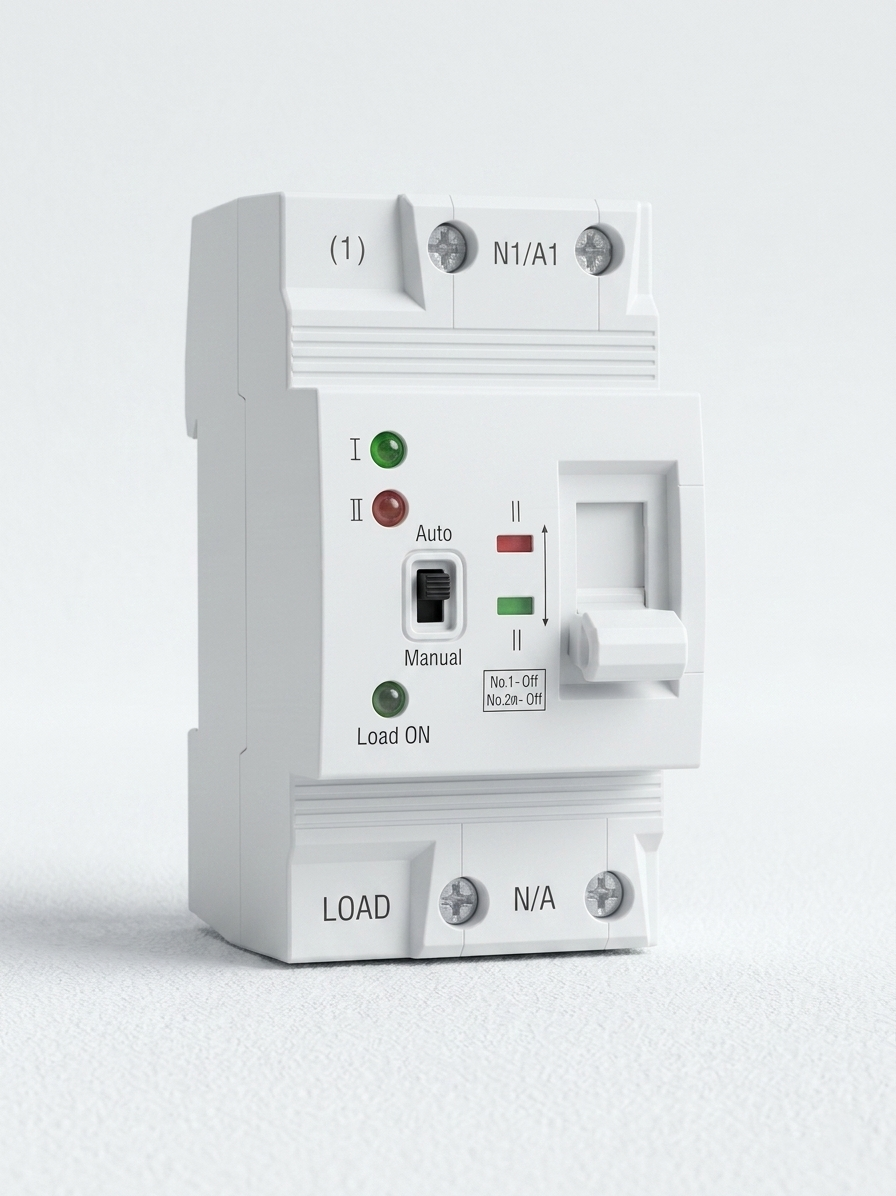

Automatic Transfer Between Two Power Sources for Continuous Power Supply
A Dual Power Automatic Transfer Switch (ATS) is an intelligent power switching device designed to automatically transfer electrical loads between two independent power sources. When the primary power supply fails or becomes abnormal, the ATS quickly switches to the backup power source, ensuring continuous and stable power supply for critical electrical equipment.
Designed for residential, commercial, and industrial applications, this compact DIN rail mounted ATS provides a safe, fast, and reliable solution for automatic power management.
Product Overview
The Dual Power Automatic Transfer Switch monitors two power inputs in real time and automatically selects the available power source to supply the connected load.
It is widely used with:
- Utility power + generator systems
- Utility power + UPS systems
- Solar power backup systems
- Emergency power systems
- Industrial control equipment
- Residential backup power applications
With intelligent control technology and a compact modular design, this ATS provides seamless power switching while reducing downtime caused by power interruptions.

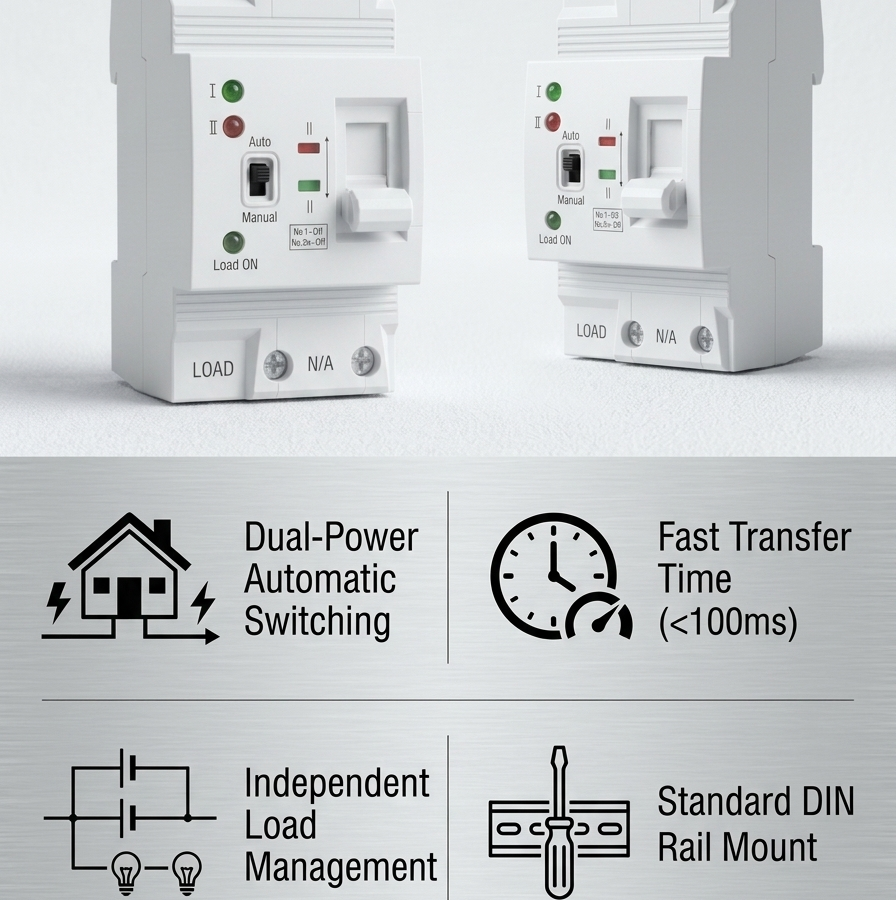

Key Features
1. Automatic Dual Power Switching
The ATS automatically detects the status of the main power supply. When power failure, voltage abnormality, or phase loss occurs, it switches to the backup power source automatically.
When the main power returns to normal, the system can automatically transfer back to the primary supply.
Benefits:
- Ensures uninterrupted power availability
- Reduces manual operation
- Protects sensitive electrical equipment
2. Fast Transfer Response
With a rapid switching response time, the ATS minimizes power interruption during source transfer.
Transfer time: <100ms
This makes it suitable for applications requiring stable power continuity, including:
- Security systems
- Communication equipment
- Data equipment
- Medical devices
- Emergency lighting systems
3. Compact DIN Rail Mounting Design
The modular design allows easy installation inside standard distribution boxes and electrical cabinets.
Advantages:
- Space-saving structure
- Easy installation and maintenance
- Compatible with standard DIN rail systems
- Suitable for residential and commercial distribution panels
4. Manual and Automatic Operation Mode
The integrated Auto/Manual selector switch allows users to choose between automatic operation and manual control.
Automatic Mode:
- The device monitors power conditions and switches automatically.
Manual Mode:
- Users can manually control the switching status during maintenance or testing.

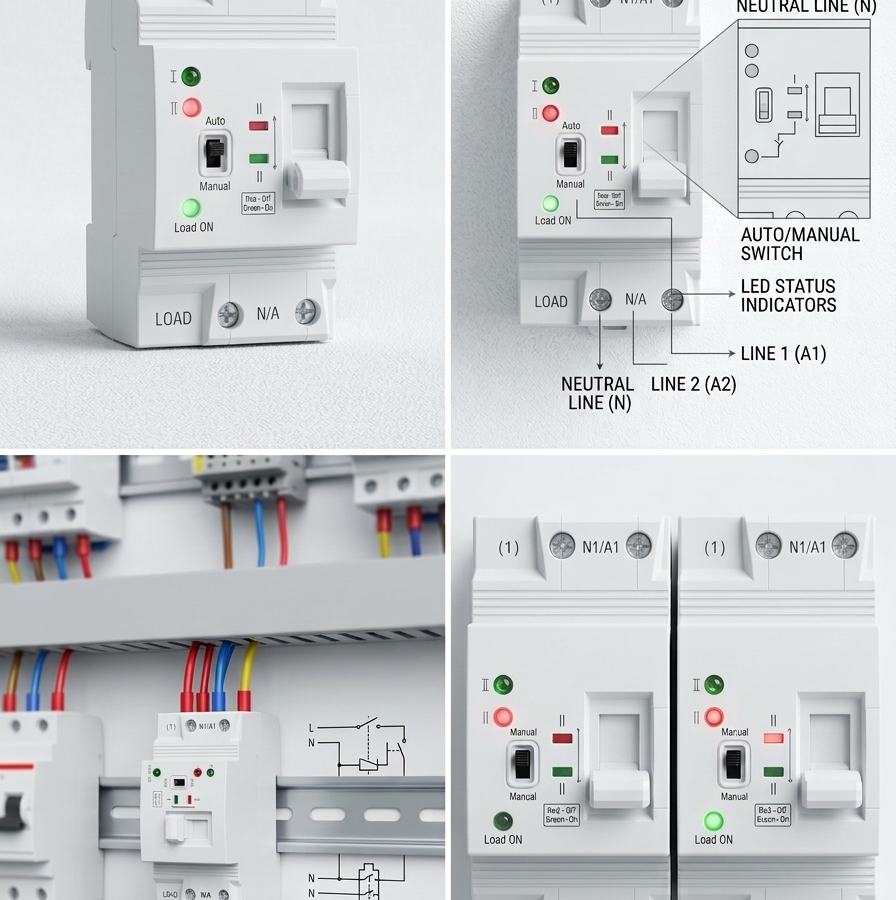

5. LED Status Indicators
Built-in LED indicators provide clear information about operating status.
Indicator functions include:
- Power source status
- Load operation status
- Switching position indication
Users can quickly identify the working condition without additional testing equipment.

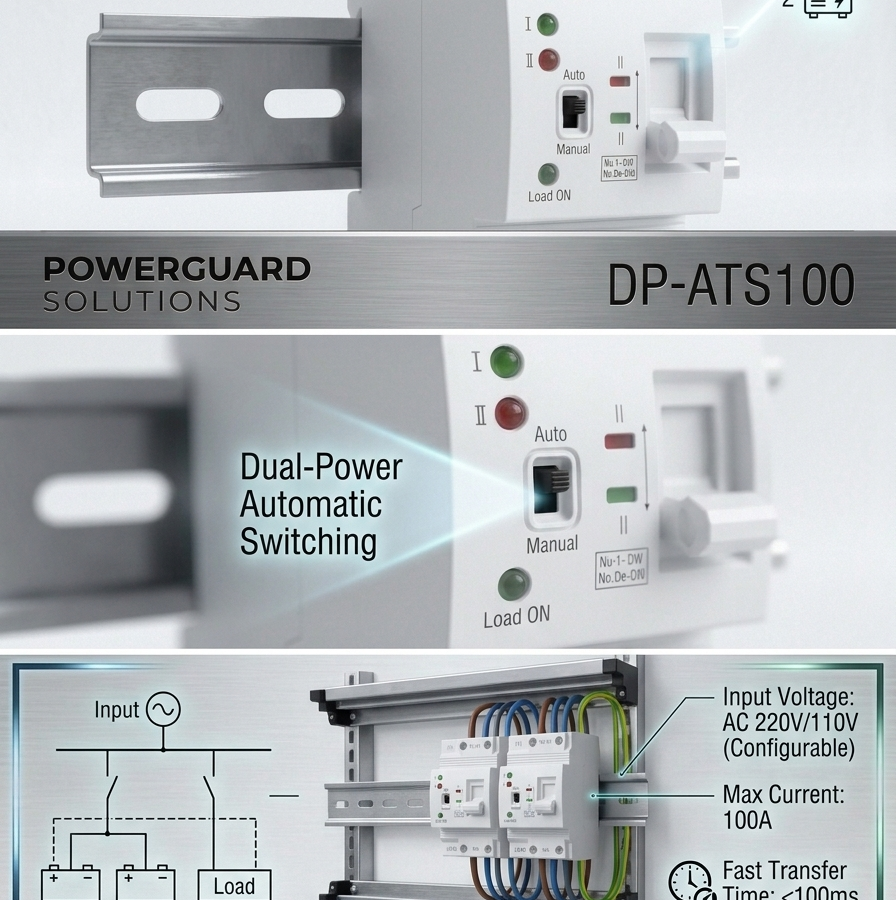

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Dual Power Automatic Transfer Switch |
| Installation | DIN Rail Mounting |
| Rated Voltage | AC 220V / 110V (Optional) |
| Rated Current | Up to 100A |
| Transfer Time | <100ms |
| Operation Mode | Automatic / Manual |
| Poles | 2P / 4P Optional |
| Application Frequency | 50/60Hz |
| Installation Environment | Indoor Electrical Distribution Systems |
Typical Applications
Residential Backup Power
Used in homes and apartments to automatically switch between:
- Grid power
- Backup generator
- Solar energy storage systems
Ensures continuous electricity supply for lighting, refrigerators, security systems, and other household equipment.
Commercial Buildings
Suitable for:
- Office buildings
- Shopping centers
- Hotels
- Retail stores
Provides reliable backup power switching for essential electrical systems.
Industrial Applications
Applied in:
- Factory automation systems
- Control cabinets
- Production lines
- Industrial equipment
Helps maintain stable operation and prevent production interruptions caused by power failures.
Why Choose Our Dual Power Automatic Transfer Switch?
Reliable Power Protection
Designed with stable switching performance to ensure safe transfer between two power sources.
Easy Installation
Compact modular structure makes installation faster and maintenance simpler.
OEM & Customization Support
We provide:
- OEM branding
- Customized specifications
- Packaging solutions
- Technical support
Quality Manufacturing
Produced under strict quality control procedures to ensure consistent performance and long service life.
Frequently Asked Questions (FAQ)
What is a Dual Power Automatic Transfer Switch?
A Dual Power ATS is an electrical switching device that automatically transfers power between a primary source and a backup source when power conditions change.
Where is an ATS commonly installed?
ATS devices are commonly installed in:
- Distribution boards
- Electrical cabinets
- Generator systems
- Backup power systems
- Solar energy systems
Can the ATS work with generators?
Yes. The ATS can be used with generators to automatically switch from utility power to generator power during outages.
Does the ATS support manual operation?
Yes. The Auto/Manual selector allows manual switching for maintenance and testing purposes.
Conclusion
The Dual Power Automatic Transfer Switch (ATS) provides a smart and reliable solution for modern power management. With fast switching speed, automatic operation, DIN rail installation, and flexible applications, it helps ensure continuous electricity supply for residential, commercial, and industrial systems.
For distributors, wholesalers, and electrical contractors looking for a dependable ATS solution, our products provide excellent performance, competitive pricing, and OEM customization capability
