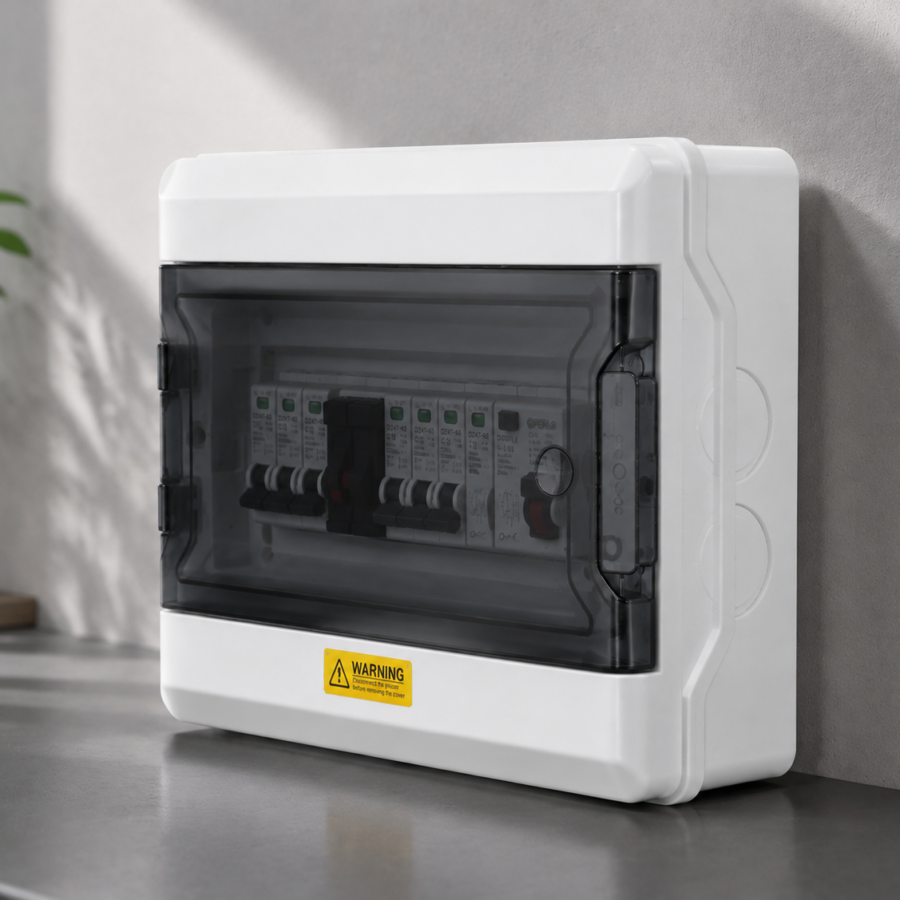

The Solar PV Distribution Box is Reliable Protection for Modern Solar Power Systems
As solar energy continues to expand worldwide, the safety and reliability of photovoltaic (PV) systems have become increasingly important. A high-quality Solar PV Distribution Box plays a critical role in protecting solar installations by managing electrical distribution, preventing faults, and ensuring stable system operation.
Designed for residential, commercial, and industrial solar applications, this PV distribution box provides a safe and organized solution for integrating protection devices into photovoltaic systems.
How does photovoltaic protection work
A Solar PV Distribution Box is an electrical enclosure that houses protective components used in solar power systems. It is typically installed between the solar panels, inverter, and electrical grid connection point.
The main purpose of the distribution box is to:
- Protect circuits from overcurrent and short circuits
- Prevent damage caused by electrical surges
- Provide safe isolation and maintenance access
- Improve system reliability and service life
By combining multiple protection functions into one compact enclosure, it simplifies installation and enhances overall system safety.
Key Features of Our Solar PV Distribution Box
1. Durable and Weather-Resistant Enclosure
The enclosure is manufactured using high-quality ABS and PC materials, providing:
- Excellent impact resistance
- Flame-retardant performance
- UV resistance
- Long-term outdoor durability
The robust housing protects internal electrical components from dust, moisture, and environmental conditions, making it suitable for demanding solar applications.
2. High Protection Level for Outdoor Applications
With an IP65-rated design, the PV distribution box provides reliable protection against:
- Dust penetration
- Water splashes
- Rain and humidity
This allows stable operation in various environments, including rooftops, solar farms, commercial buildings, and outdoor electrical installations.

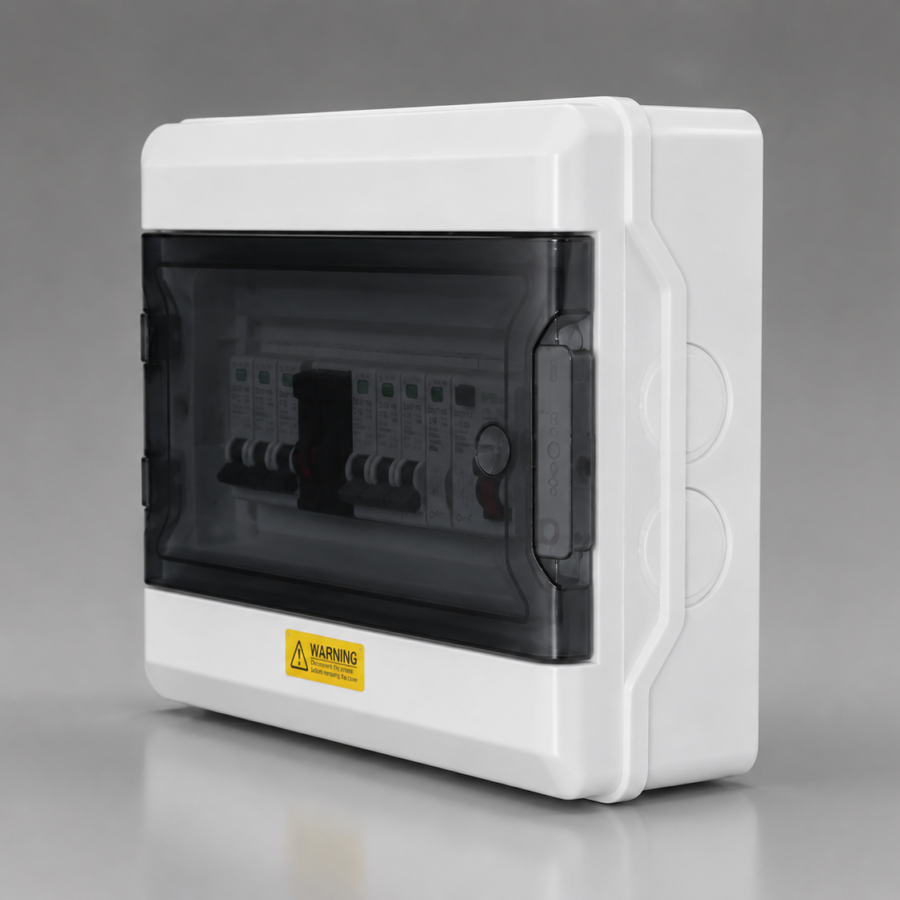

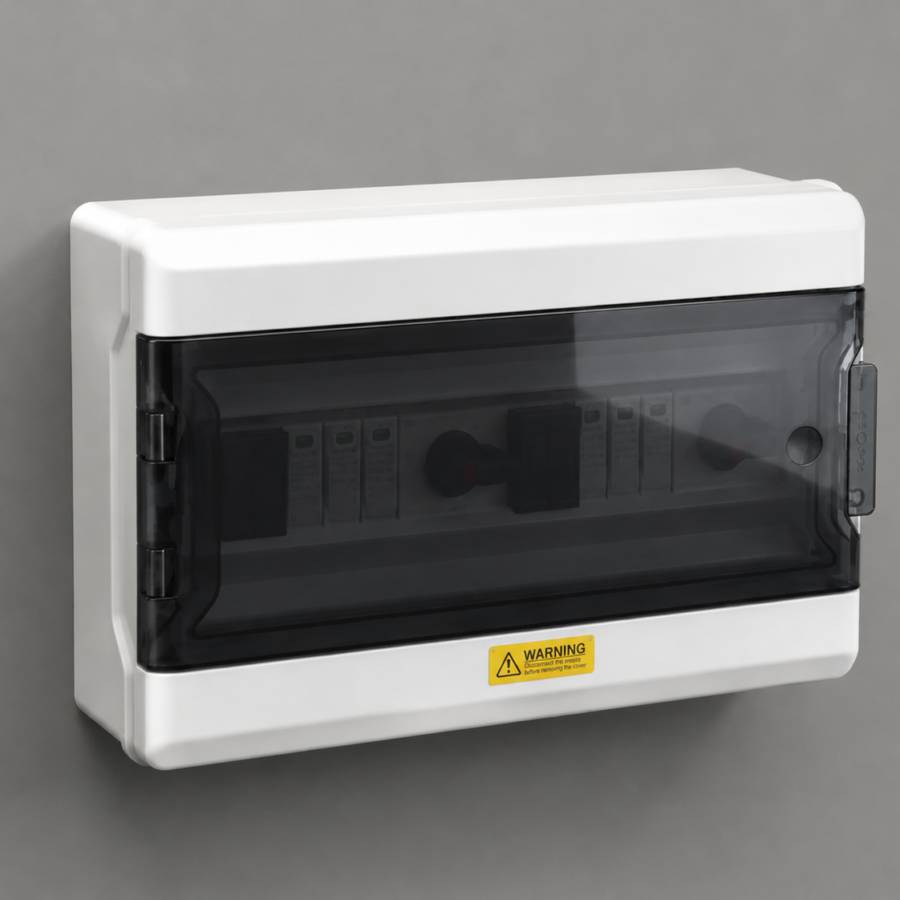

3. Transparent Protective Cover Design
The smoked transparent PC cover allows users to quickly check the status of internal devices without opening the enclosure.
Benefits include:
- Easy visual inspection
- Improved operational safety
- Reduced maintenance time
- Protection against accidental contact
The hinged cover design also allows convenient access during installation and servicing.

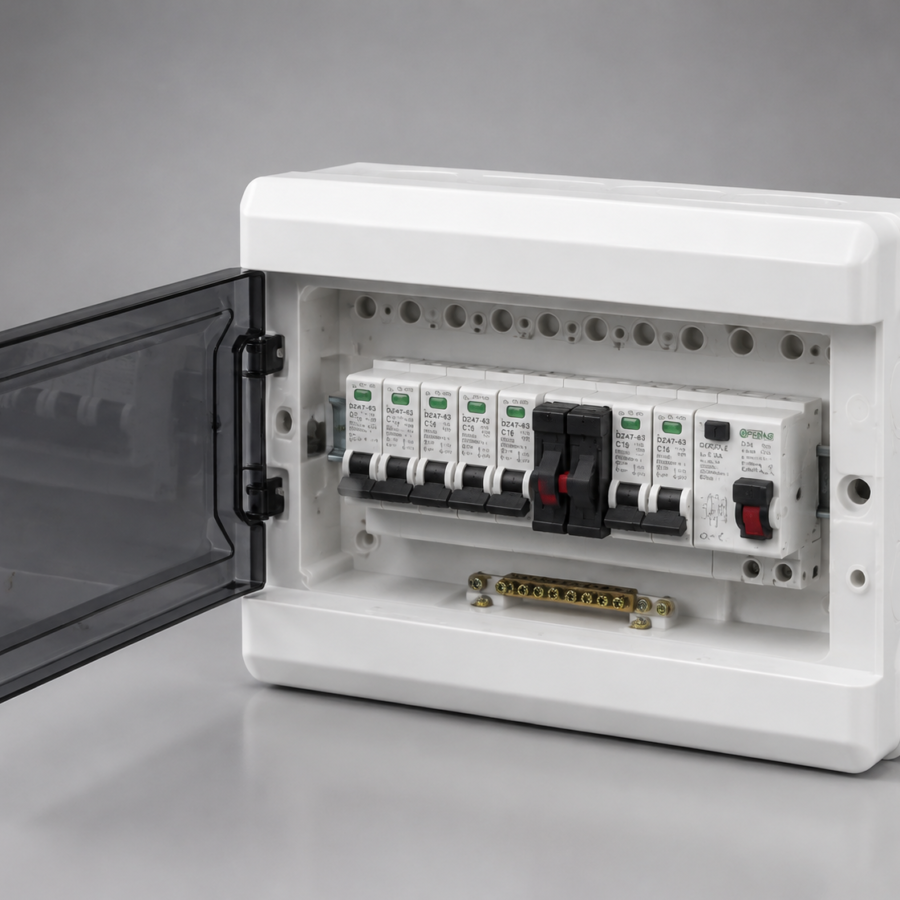

4. Spacious Internal Layout for Easy Wiring
A well-designed internal structure provides enough space for:
- DC circuit breakers
- Surge protection devices (SPD)
- Isolation switches
- Terminal blocks
- Cable connections
The optimized layout makes wiring easier, improves heat dissipation, and reduces installation time for electricians.
5. Multiple Cable Entry Knockouts
The enclosure includes pre-designed cable entry points on multiple sides, allowing flexible installation according to different project requirements.
Advantages:
- Faster cable routing
- Cleaner installation
- Suitable for various wiring configurations
6. Safe Grounding Connection
The integrated grounding terminal ensures reliable grounding performance and improves system safety.
Proper grounding helps:
- Reduce electrical risks
- Protect equipment from faults
- Improve user safety
Typical Applications
This Solar PV Distribution Box is suitable for:
Residential Solar Systems
- Rooftop photovoltaic installations
- Home energy systems
- Small solar projects
Commercial Solar Projects
- Office buildings
- Factories
- Shopping centers
- Commercial rooftops
Industrial Solar Applications
- Solar power stations
- Large-scale PV systems
- Renewable energy projects

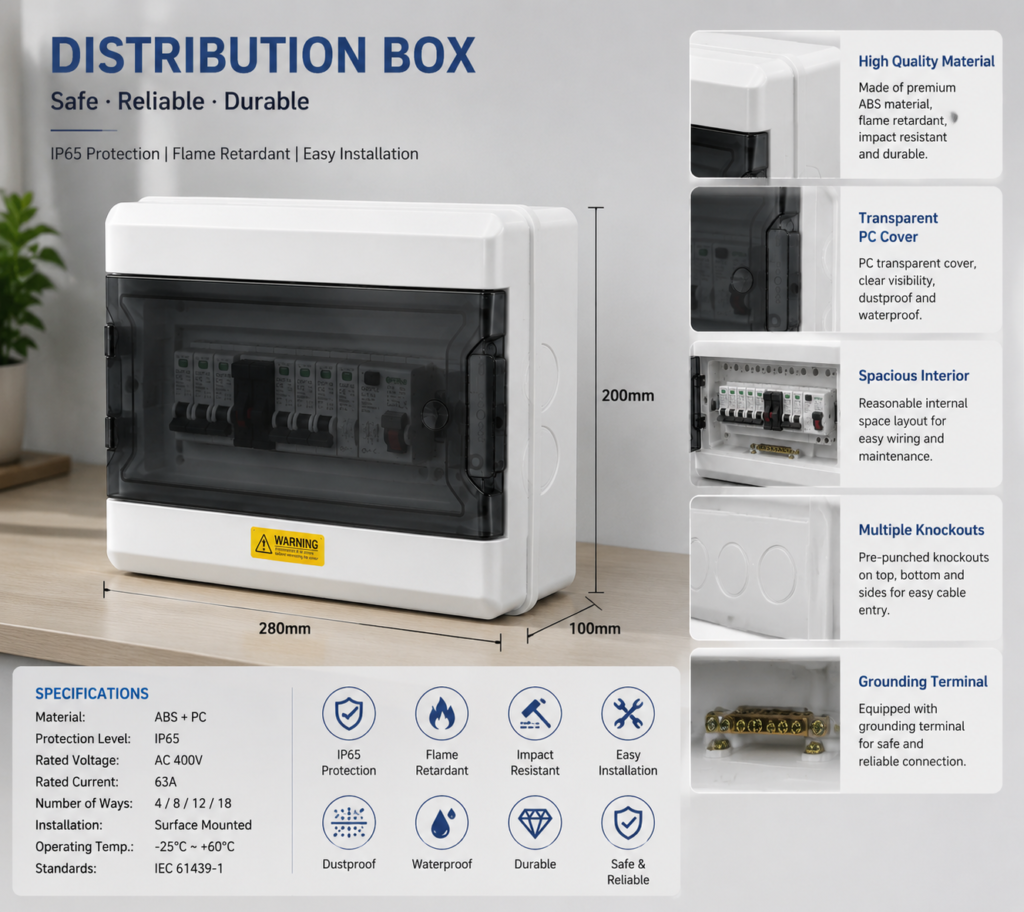

Technical Specifications
| Item | Specification |
|---|---|
| Material | ABS + PC |
| Protection Degree | IP65 |
| Rated Voltage | AC 400V |
| Rated Current | Up to 63A |
| Installation Type | Surface Mounted |
| Operating Temperature | -25℃ ~ +60℃ |
| Available Ways | 4 / 8 / 12 / 18 Ways |
| Standard | IEC 61439-1 |
Why Choose Our Solar PV Distribution Box?
As a professional electrical product manufacturer, we focus on providing reliable solutions for global solar and power distribution markets.
Our advantages include:
Strict quality control during production
Reliable electrical performance
Customized solutions for different markets
OEM & private label support
Stable supply capacity for distributors and contractors
From residential solar systems to large commercial projects, our PV distribution boxes provide the protection, reliability, and flexibility required by modern renewable energy applications.
Powering the Future with Safer Solar Solutions
Solar energy represents the future of clean power, but safety and reliability remain the foundation of every successful photovoltaic project.
A professional Solar PV Distribution Box ensures that solar systems operate efficiently, safely, and continuously — helping installers, distributors, and end users achieve long-term value.
Choose reliable protection. Choose smarter solar solutions.
