Smart Pressure Control for Automatic Water Pump Systems
An Electronic Pressure Switch is designed to control the automatic start and stop of water pumps by monitoring pressure changes inside the pipeline. When the system pressure drops, the switch starts the pump. When the required pressure is reached or water flow stops, it shuts the pump down automatically.
Compared with a traditional mechanical pressure switch, an electronic pressure switch offers easier operation, more stable control, and better protection for pump systems. It is widely used in domestic water supply, booster pump systems, garden irrigation, well water systems, and small commercial water pressure applications.
For installers, distributors, and pump system suppliers, this product provides a compact and practical solution for building safer and more reliable water pressure control systems.
What Is an Electronic Pressure Switch Used For?
The electronic pressure switch is mainly used to control water pump operation automatically. It helps maintain stable water pressure while reducing manual operation and unnecessary pump running.
It can be used for:
- Household water booster systems
- Automatic water pump control
- Garden and agricultural irrigation
- Well water supply systems
- Pressure boosting for buildings
- Small commercial water supply systems
- Pump protection and pressure monitoring
When installed correctly, the device helps the pump respond quickly to water demand and improves the overall efficiency of the water supply system.
Key Features
Automatic Pump Start and Stop
The electronic pressure switch detects changes in pipeline pressure and controls the pump automatically. When a tap is opened or water demand increases, the pump starts. When water demand stops, the pump shuts down.
Stable Water Pressure Control
By monitoring system pressure in real time, the switch helps keep the water supply more stable and reduces pressure fluctuation during daily use.
Dry-Run Protection
Some pump failures happen when the pump keeps running without water. This electronic pressure switch can help protect the pump from dry running, depending on the model and system configuration.
Compact and Easy to Install
The product has a compact structure and is suitable for direct installation on water pump systems or pipeline connections. It is designed for convenient wiring, installation, and maintenance.
Suitable for Different Pump Systems
It can be used with surface pumps, booster pumps, self-priming pumps, and other compatible water pump systems. For special applications, voltage, thread size, pressure range, and protection level should be selected according to actual project requirements.
Product Advantages
Better Control Than Traditional Mechanical Switches
Traditional pressure switches rely on mechanical contacts and spring adjustment. Electronic pressure switches provide a more modern control method with clearer operating status and more convenient adjustment.
Helps Extend Pump Service Life
By avoiding unnecessary pump running and reducing abnormal operation, the switch helps improve pump protection and supports longer system service life.
Practical for B2B Pump System Projects
This product is suitable for pump manufacturers, water system installers, wholesalers, and hardware distributors who need a reliable pressure control component for water pump applications.
Easy Product Integration
The switch can be integrated into different water pump control systems, making it suitable for both replacement markets and new pump system assembly.

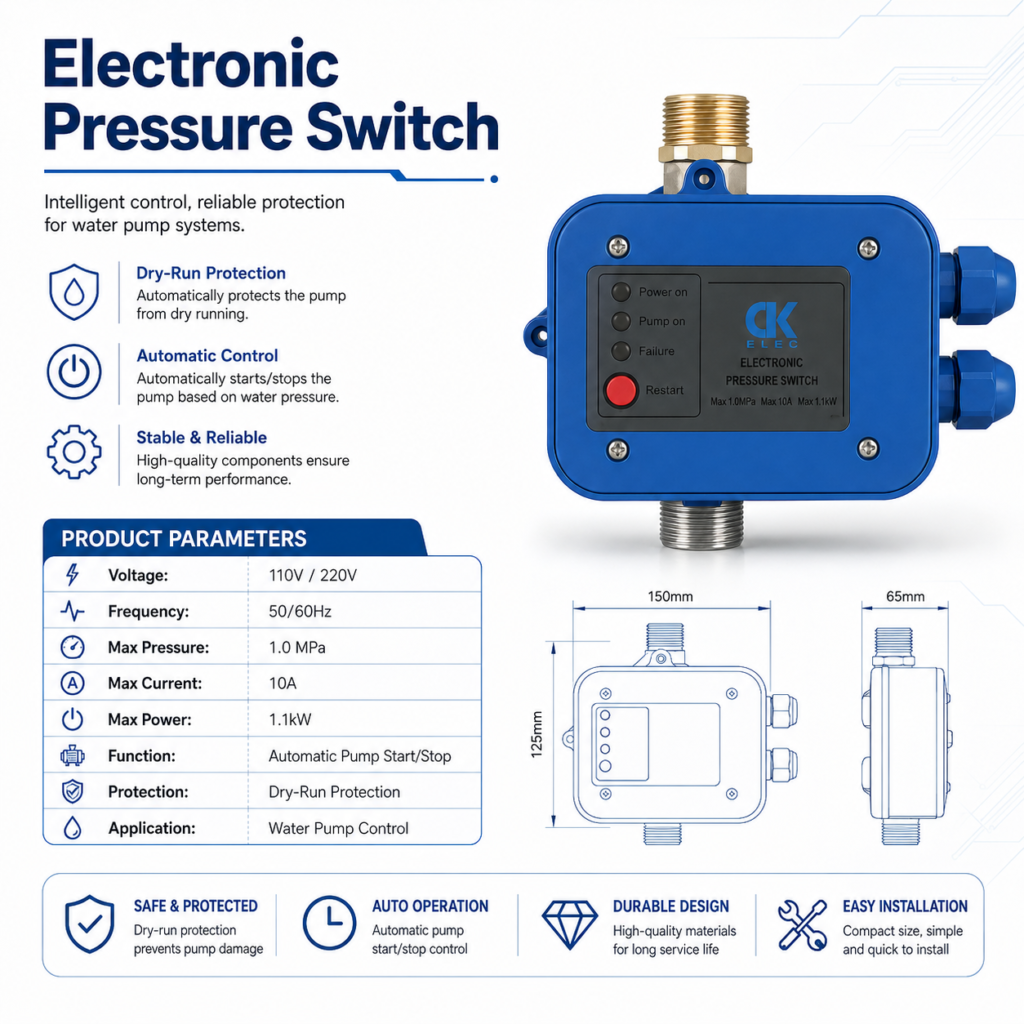

Technical Specifications
| Item | Specification |
| Product Name | Electronic Pressure Switch |
| Application | Water pump automatic control |
| Function | Pump start/stop control, pressure monitoring |
| Suitable Media | Clean water or non-corrosive liquid |
| Voltage | 110V / 220V / Customized |
| Frequency | 50Hz / 60Hz |
| Connection Size | Customized according to model |
| Pressure Range | Customized according to model |
| Protection Function | Dry-run protection, pressure control |
| Installation | Vertical or according to system design |
| Application Pump Type | Booster pump, self-priming pump, surface pump, water supply pump |
Note: Please adjust the voltage, pressure range, thread size, current rating, and protection level according to the actual product model before publishing.
How Does an Electronic Pressure Switch Work?
The electronic pressure switch monitors the pressure inside the water system. When water is used, the pressure drops. The switch sends a signal to start the pump. When water use stops and the system reaches the required pressure condition, the switch turns the pump off.
This automatic control process helps reduce manual operation and keeps the water supply system running more smoothly.
Applications

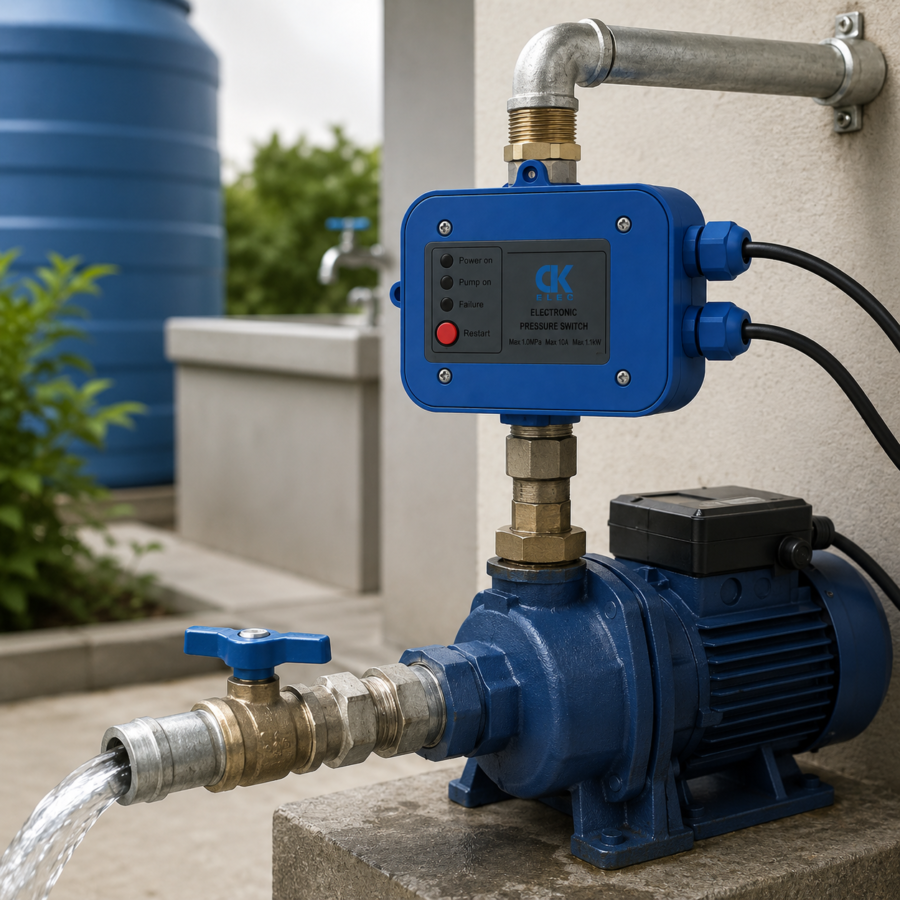

Domestic Water Supply
Used in household booster systems to improve water pressure for bathrooms, kitchens, washing machines, and other daily water points.
Garden Irrigation
Suitable for garden watering systems where automatic pump control is needed.
Well Water Pump Systems
Can be used with well pumps or self-priming pumps to support automatic water delivery.
Building Pressure Boosting
Suitable for small building water pressure systems where stable pump control is required.
Pump Control and Protection
Used as a control component to help monitor pressure and protect the pump from abnormal operation.
Why Choose Our Electronic Pressure Switch?
We provide electronic pressure switches for pump control systems with stable performance, practical structure, and flexible specification options. Our products are suitable for water pump manufacturers, pump system suppliers, distributors, and project buyers looking for reliable pressure control solutions.
We support B2B supply, product customization, and model selection based on actual pump system requirements.
FAQ
What is the difference between an electronic pressure switch and a mechanical pressure switch?
A mechanical pressure switch uses mechanical contacts and spring adjustment. An electronic pressure switch uses electronic sensing and control, offering easier operation, clearer working status, and more stable pump control.
Can this electronic pressure switch be used for water pumps?
Yes. It is mainly used for automatic water pump start and stop control in water supply, booster pump, irrigation, and well water systems.
Does it support dry-run protection?
Many electronic pressure switch models include dry-run protection or water shortage protection. The exact protection function depends on the product model.
Can the voltage be customized?
Yes. Common voltage options include 110V and 220V. Other specifications can be customized according to project requirements.
What pump types can it work with?
It can be used with compatible booster pumps, self-priming pumps, surface pumps, and water supply pumps. Please confirm the pump power, voltage, pressure range, and connection size before ordering.
Is it suitable for industrial use?
It is suitable for small water supply and pump control systems. For heavy-duty industrial systems, the working pressure, current load, protection level, and installation environment should be checked carefully before selection.
Looking for a reliable Electronic Pressure Switch for your water pump system?
Contact us to get product specifications, model selection support, and wholesale quotation.
